• 대형 컬러 터치스크린
• 자체 프린터 내장
• 0.3~10.0um (6채널)
• 데이터 메모리
• 풍속,온습도센서 지원 (옵션)

​​

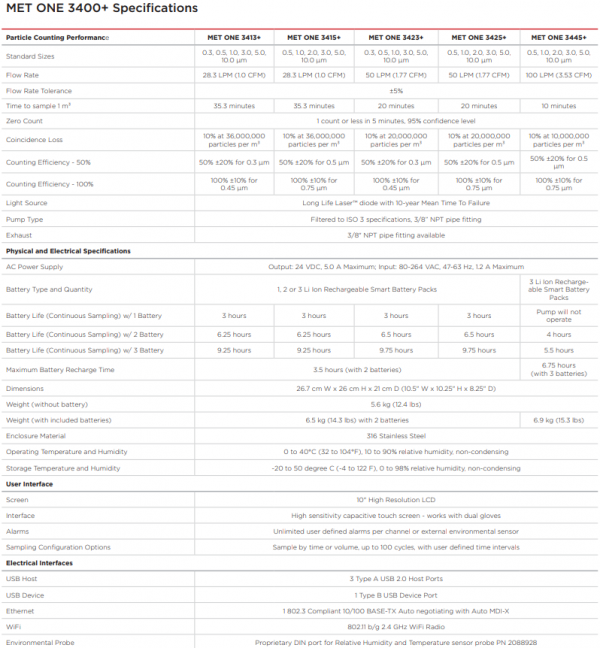

◈ 스펙 ◈

STANDARD SIZE CHANNEL : 0.3um,0.5um,1.0um,3.0um,5.0um,10.0um(6 Channel)

FLOW RATE : 28.3 LPM

PUMP TYPE : Air Vacuum

COUNT DISPLAY : Color 1/4 VGA TFT Touch Screen

INTERFACE : Windows CE Based

DATA STORAGE : 5,000 samples, scrollable on Historical Data review screen

COMMUNICATION INTERFACE :  RS-232, RS-485, 802.11 b/g Wireless, 802.3 Ethernet,
                                                              USB Client (Version 1.1), USB Host (Version 1.1)

BATTERY TYPE : Lithium ion smart battery; rechargeable, ejectable and hot-swappable

OPERATING TIME : 28.3 LPM (1.0 CFM) and 50 LPM (1.77 CFM) up to 6 hours**
                                    100 LPM (3.53 CFM) up to 3 hours**

BATTERY RECHARGE TIME : 6.75 hours minimum, 10 hours maximum

POWER : 24 VDC 3.2 A with 100~240 VAC 50/60 Hz adapter (included in ship kit)

SIZE DIMENTIONS : 31.8 W x 25.4 D x 20.3 H cm (12.5 x 10 x 8 inches)

WEIGHT(WITHOUT BATTERY) : 3413 and 3415 7.55 kg (16.6 lbs)
                                                            3423 and 3425 8.33 kg (18.3 lbs)
                                                            3445 8.65 kg (19.0 lbs)

ENCLOSURE MATERIAL : Stainless Steel

ENVIRONMENT : Operating : 0 to 40° C (32 to 104° F),
                                                   10 to 90% relative humidity, non-condensing
                                Storage :     -40 to 50° C (-40 to 122° F),
                                                   0 to 98% relative humidity, non-condensing

WARRANTY : 1 years (instrument), 3 years (Long Life Laser diode)



◈ METONE 3413+ 모델로 업그레이드됨.
