• 다양한 측정범위 선택가능
• 3가지 농도단위 변환가능
• IP66 방수,방진등급
• 12,300개 데이터저장
• 2.4인치 컬러 스크린

◈ 주요 특징 ◈

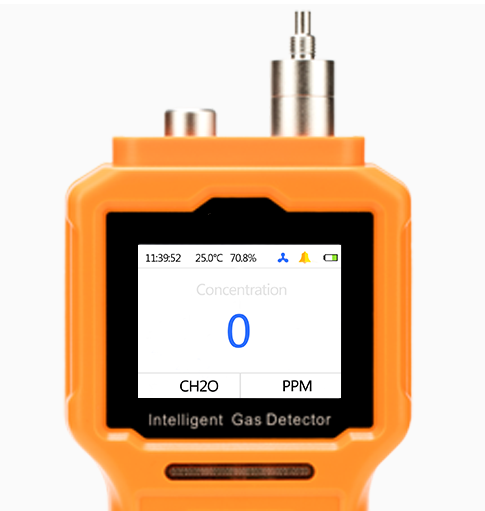

1. 2.4인치 컬러 스크린

2. 다양한 측정범위 선택가능

3. 내장 펌프형으로 빠른 반응속도 및 낮은 오차율

4. 3가지 농도단위 변환가능

5. IP66 방수, 방진등급

6. 12,300그룹의 데이터 저장

7. 온도 및 습도 센서 (옵션)

Wide Range of Uses

• IP66 rating,suitable for all kinds of harsh

  applications
• three concentration units are available：

  PPM,%VOL,mg/m3
• a variety of accessories:hose,probe,sampling

  handle,dust filter

​

​

​◈ Product Specification ◈

• ​Product Type：formaldehyde(CH2O) gas detector
• Detection Range:0-10、20、50、100、500、1000PPM（optional）
• Resolution:0.01PPM（0-100PPM）、0.1PPM（0-500PPM）、1PPM(0-1000PPM)

• Response time：≤20s（T90）

  Detection Accuracy：≤±3%

• Recovery Time：≤20s

  Repeatability：≤±1%

• IP Rating：IP66

  Explosion Proof Sign：CNEx16.0538

• Temperature and humidity(Optional)：Temperature detection range:-40 ～ 120℃
  Humidity detection range:0-100%RH

• Detection Method：Pumping, built-in miniature air pump
• Detection pattern：Real-time detection mode, timing detection mode and cycle detection mode can be switch freely
• Storage Method：Automatically saving or manually saving (optional),up to 123,200 groups of data can be stored
• Operating Environment： Operating Temperature: -30 ～ 60℃
  Operating Humidity: ≤90%RH，Non-condensing
  Operating Pressure: -30Kpa ～ 100Kpa
  Power : 4000mA high capacity polymer rechargeable battery
• Dimensions / Weight:210*80*70 mm（L×W×H）0.35 Kg（net weight）

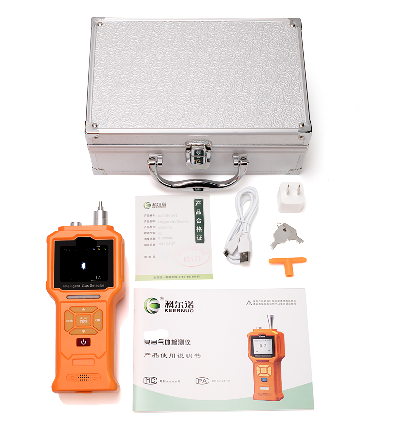

• Standard Accessories：Instrument box, manual, certificate, USB charger, calibration cover
• Executive Standard： GB3836.1-2010 "Explosive Environment Part 1: general requirements for equipment"

​
