COD | SMR 44 (COD 센서)

페이지 정보

작성자 최고관리자 작성일21-02-04 14:05 조회114회 댓글0건

본문

IP68 방진 방수구조
플러그 앤 플레이
탁도 또는 SS 보상
소프트웨어를 통한 교정
사파이어 재질로 내구성 업

◈ Description

Chemical Oxygen Demand Analyzer is connected directly via RS485 communication interface, providing simple, reliable, cost- saving process data with remote monitoring, calibration, configuration and diagnostics capabilities.

The Chemical Oxygen Demand Meter housing in a robust IP68 proof enclosure, 1500 N tensile strength Kevlar reinforced cable, up to 1.2 km digital data transmission,COD meter and COD Analyzer is ideally used in water/wastewater industry.

◈ Features

All-in-One Compact Housing, Built-in Transmitter and Sensors
Robust IP68 Water Submersible Protection
Plug & Play, On-line Realtime Measurement
Ultra Low Power Consumption, Ideal for Outdoor Applications
1500 N Tensile Strength Kevlar Reinforced Cable
Surge Protection for Power and RS485 Communication
RS485 Digital Communication, Minimize Cabling and Engineering Cost
Standard Modbus RTU Protocol, Direct Connected with PLC, HMI
Sapphire Glass Windows to Prevent Scratch
Innovative Nano Coating to Remain Window Clean
Auto Cleaning Wiper, Less Maintenance
Turbidity or Suspended Solids Compensation
Onboard Memory Allowing Users Easily Calibrate and Configure Sensor at Lab and Distribute to Various Fields Sites
Software Tool for Data Monitoring, Calibration , Configuration and Diagnosis

Typical Application

Drinking water, surface water, industry, water treatment, wastewater

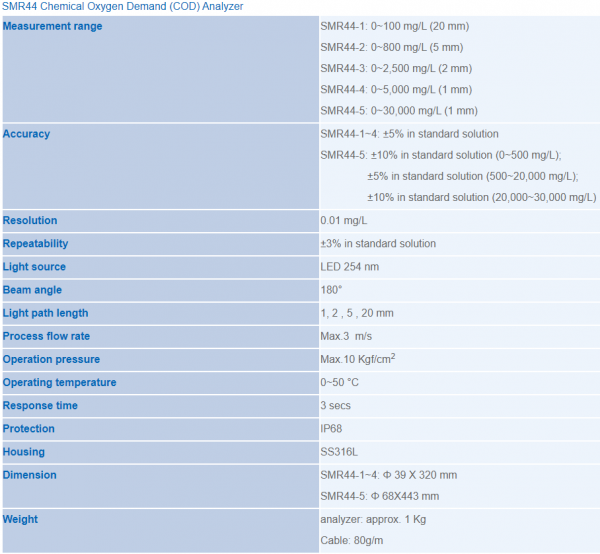

General

Output Signal: RS485 (Modbus RTU protocol), 19,200 bps, 8 data bits, no parity, 1 stop bit; 4~20 mA (optional)
Data Resolution: 16 bits (0.001% FS)
Surge Protection: 4000 V DC
Power: 5~12 V DC ±10%, 45 mA (SMR44-1~4); 12 V DC ±10%, 0.5 A (SMR44-5)
Protection: polarity, overload, short circuit
Safety: CE, FCC

Typical Applications
Drinking water, surface water, industry, water treatment, wastewater
Measurement Method

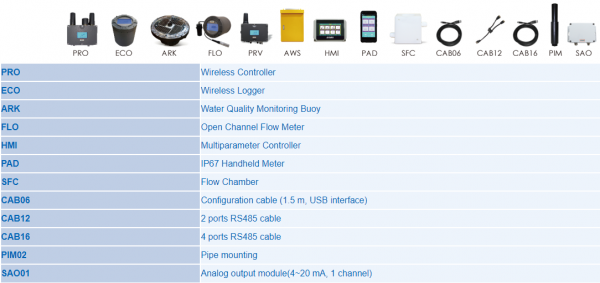

The analyzer consists of an UV 254 nm light source, a sample cell, and a light detector (photo detector). Incident light is absorbed by the sample, and the light is measured by the detector. The value depends on the amount of absorbance in the sample. The transmitter uses a long life LED and the 180° light method in accordance with International standard to assure accurate measurement values. An automated mechanical wiper is to remain surface clean and remove air bubbles of the optical window in order to maximize the accuracy and minimize the maintenance requirement. Optionals
